Zodia Iron | Z522 鐵桿桿頭 #5-P

定價 $66,000 TWD
定價 售價 $66,000 TWD
內含稅金。

下單前請確認庫存數量

Zodia TRADiTiON CB: #5-P
更多詳情請加 Line
品牌: Zodia
庫存: 庫存不足:剩餘 1 件
定價 $66,000 TWD
定價 售價 $66,000 TWD

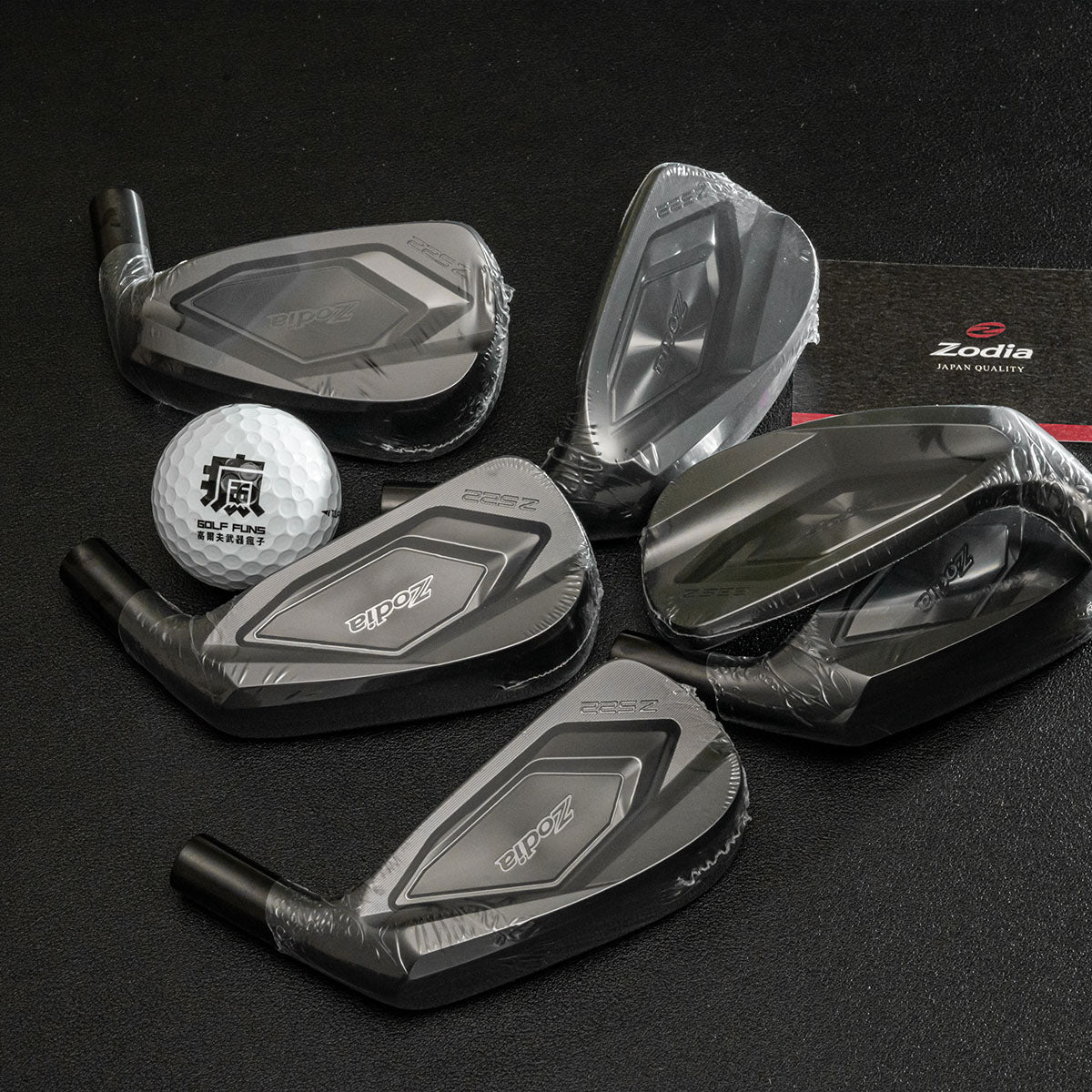

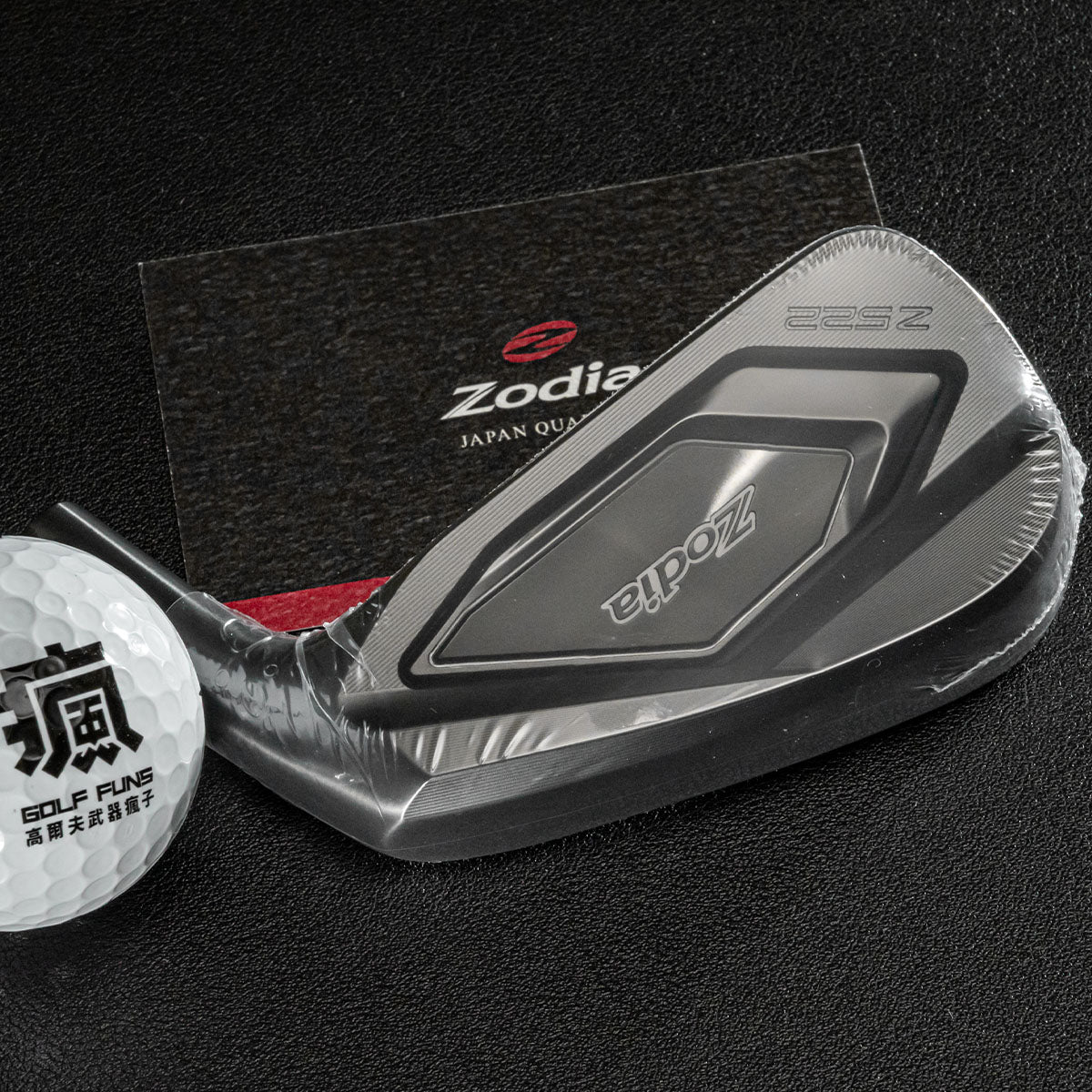

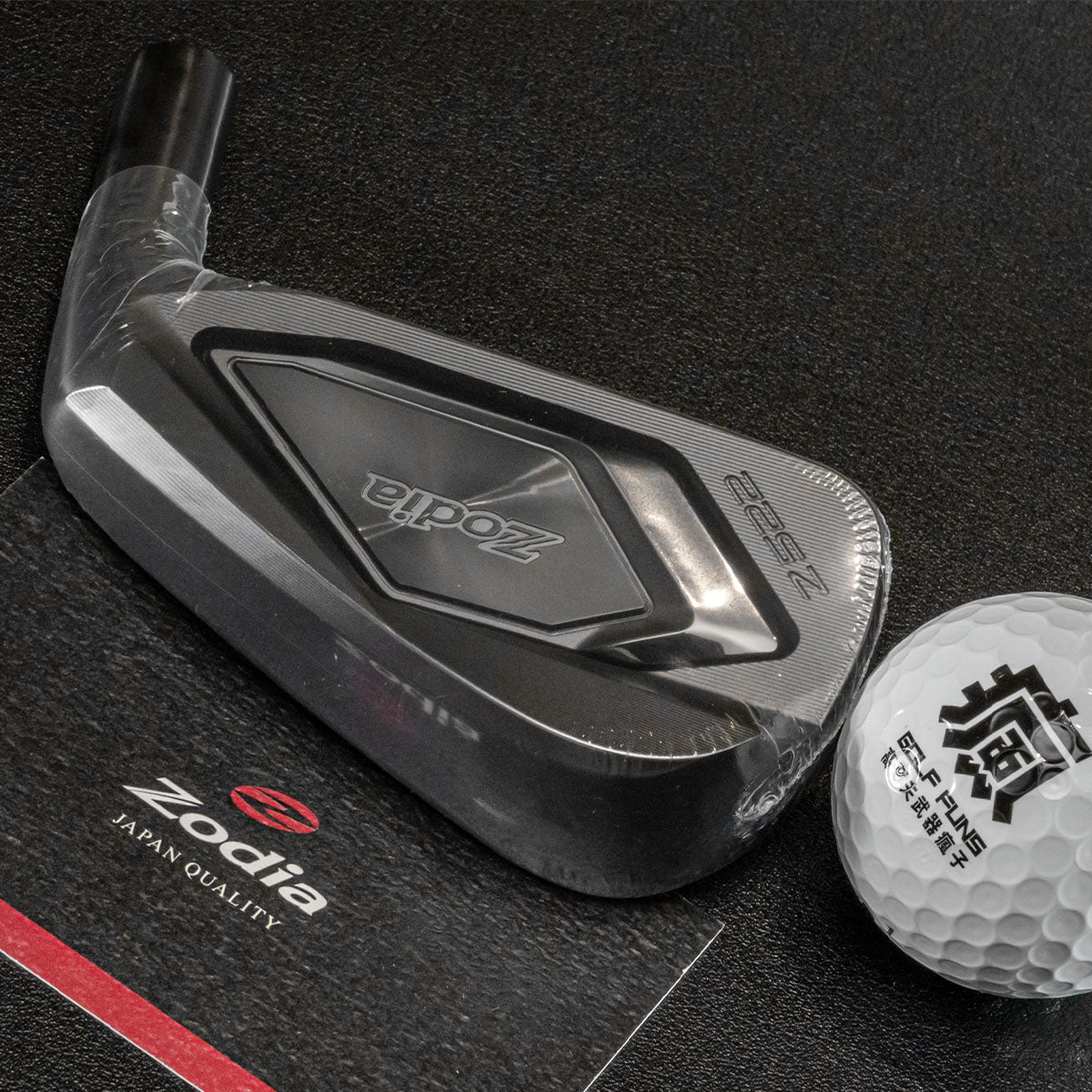

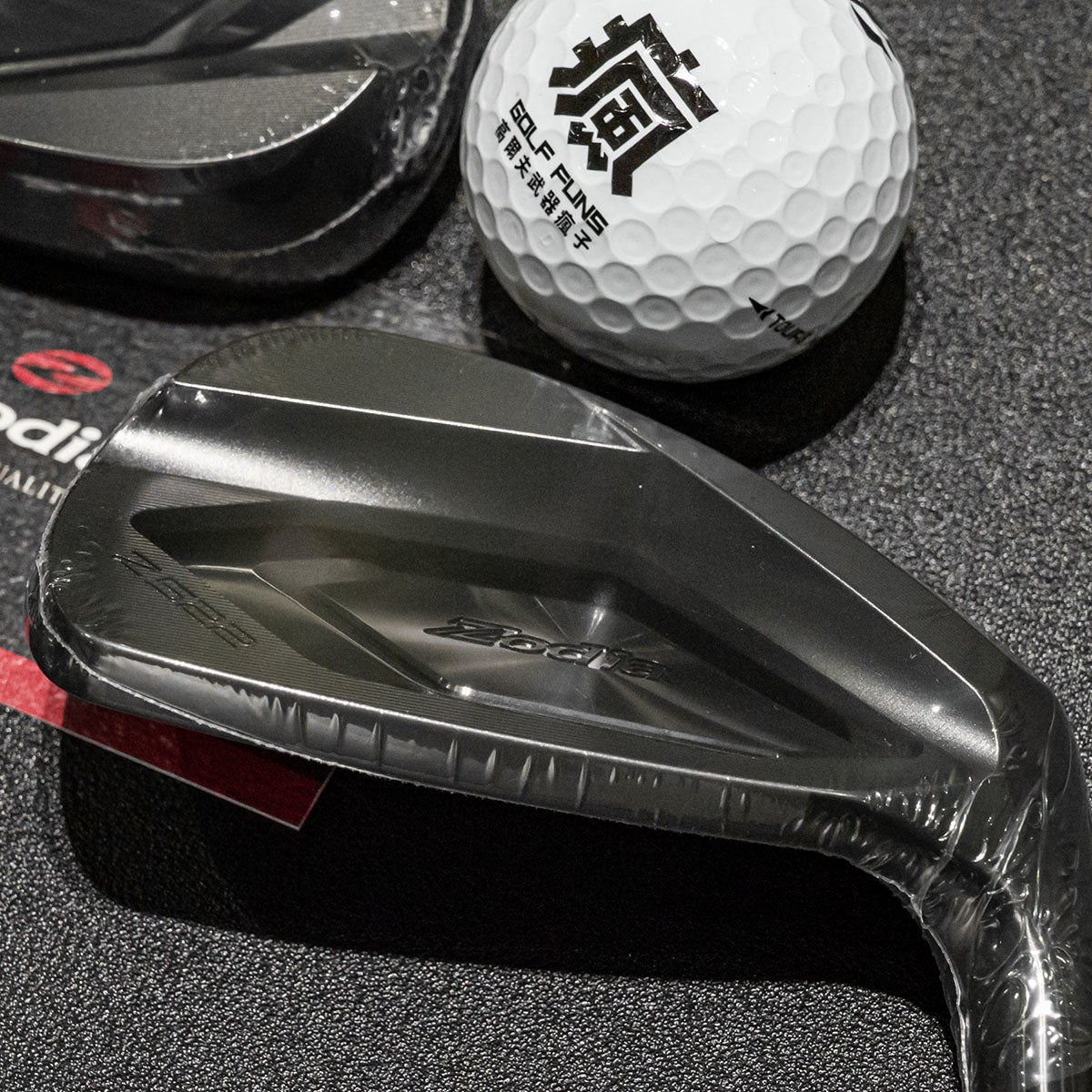

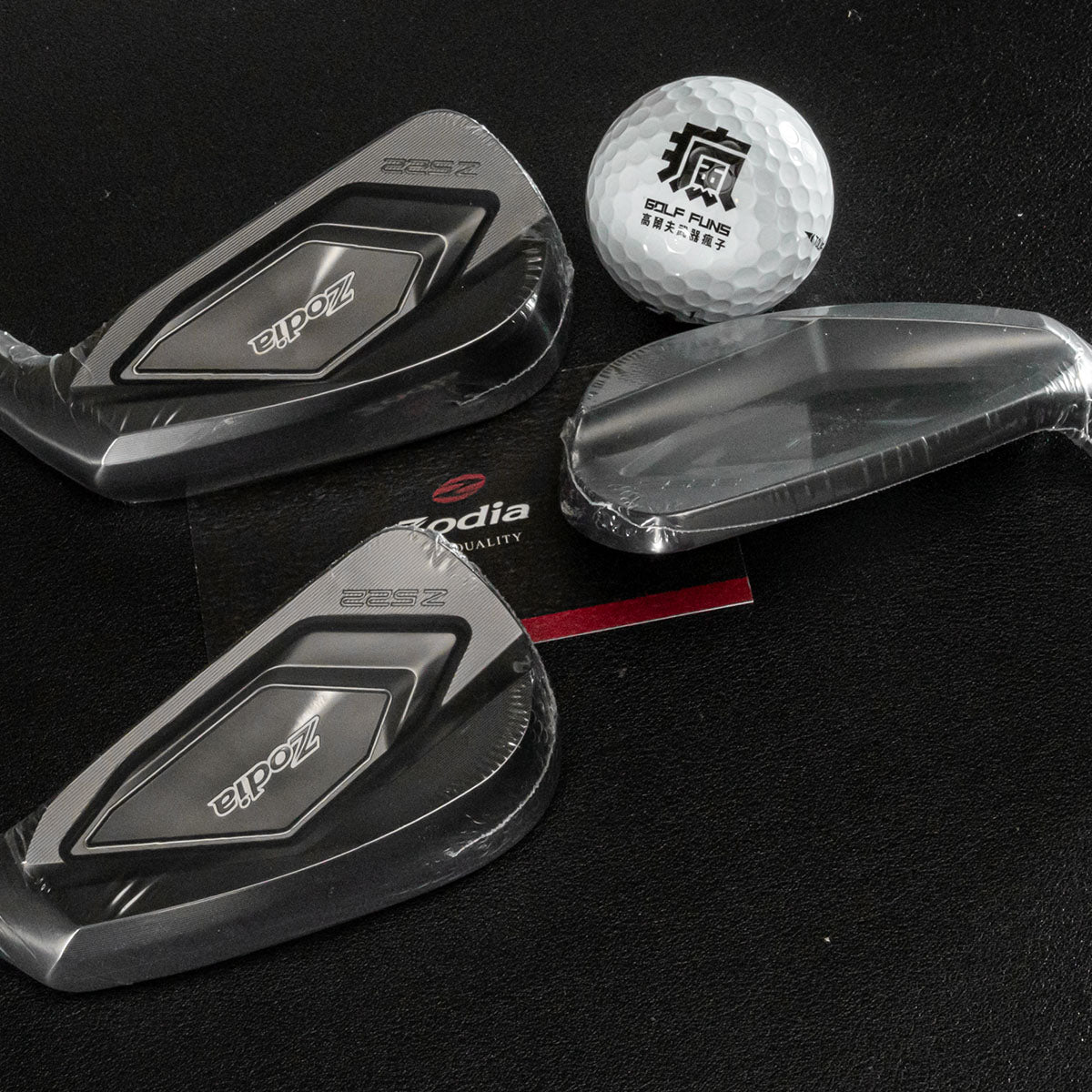

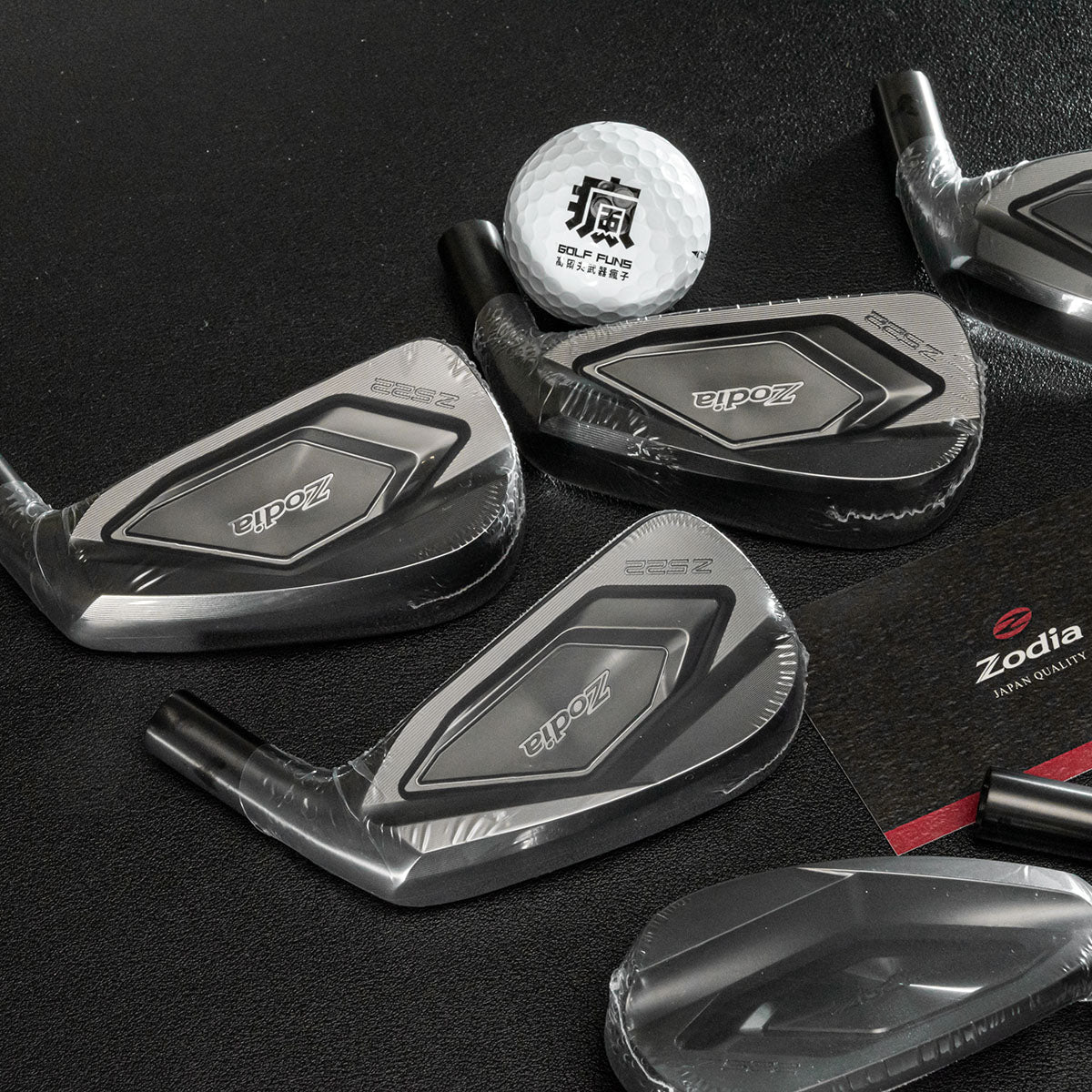

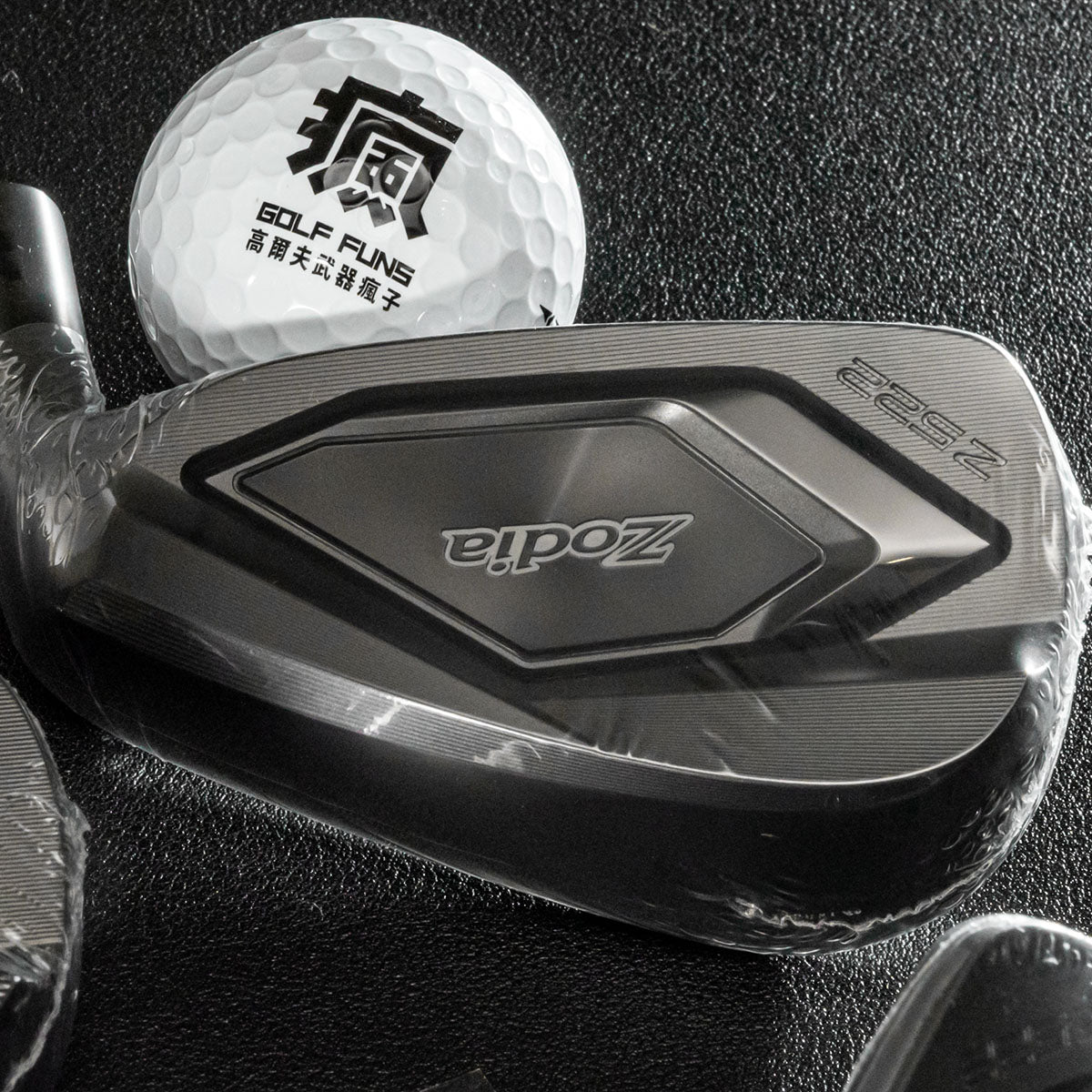

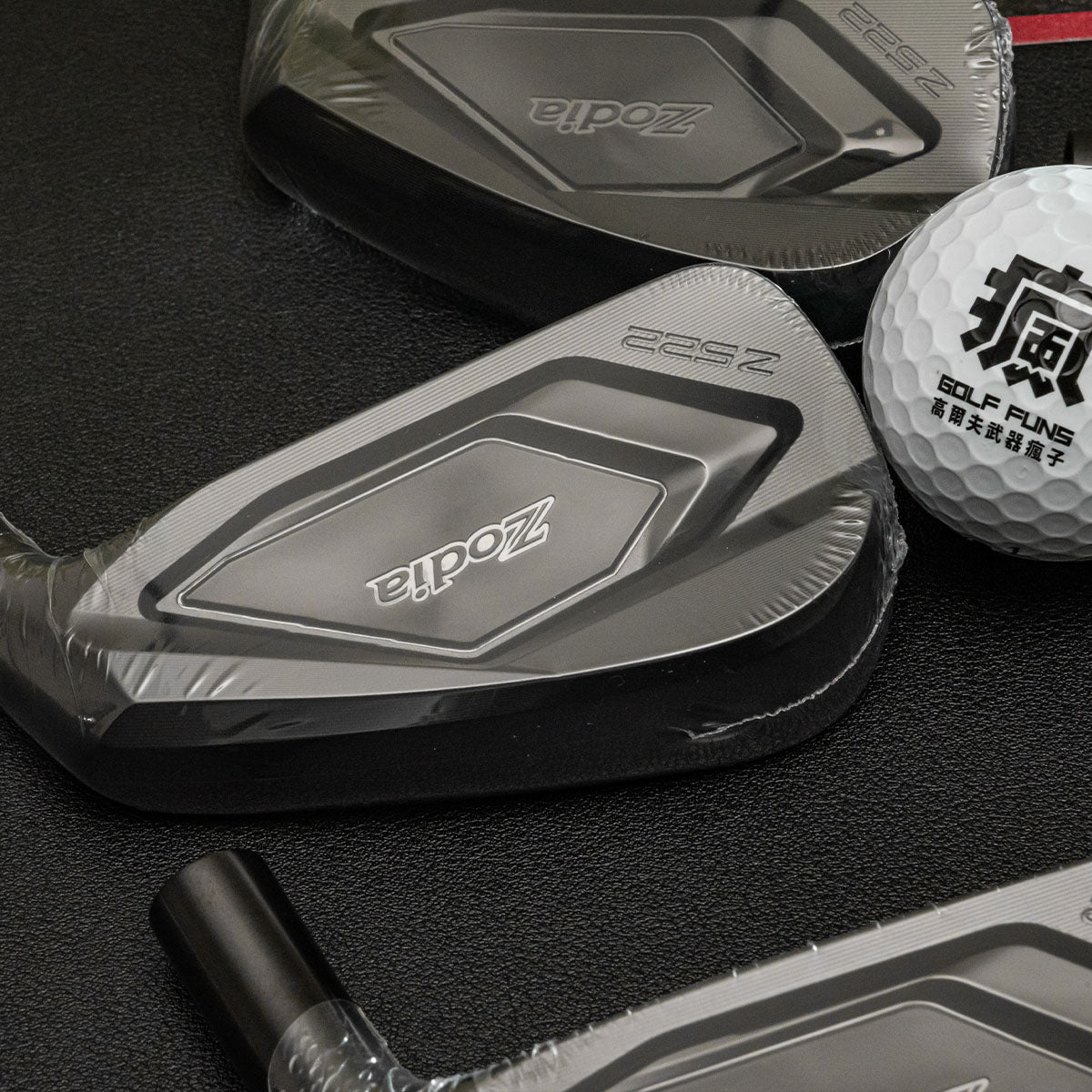

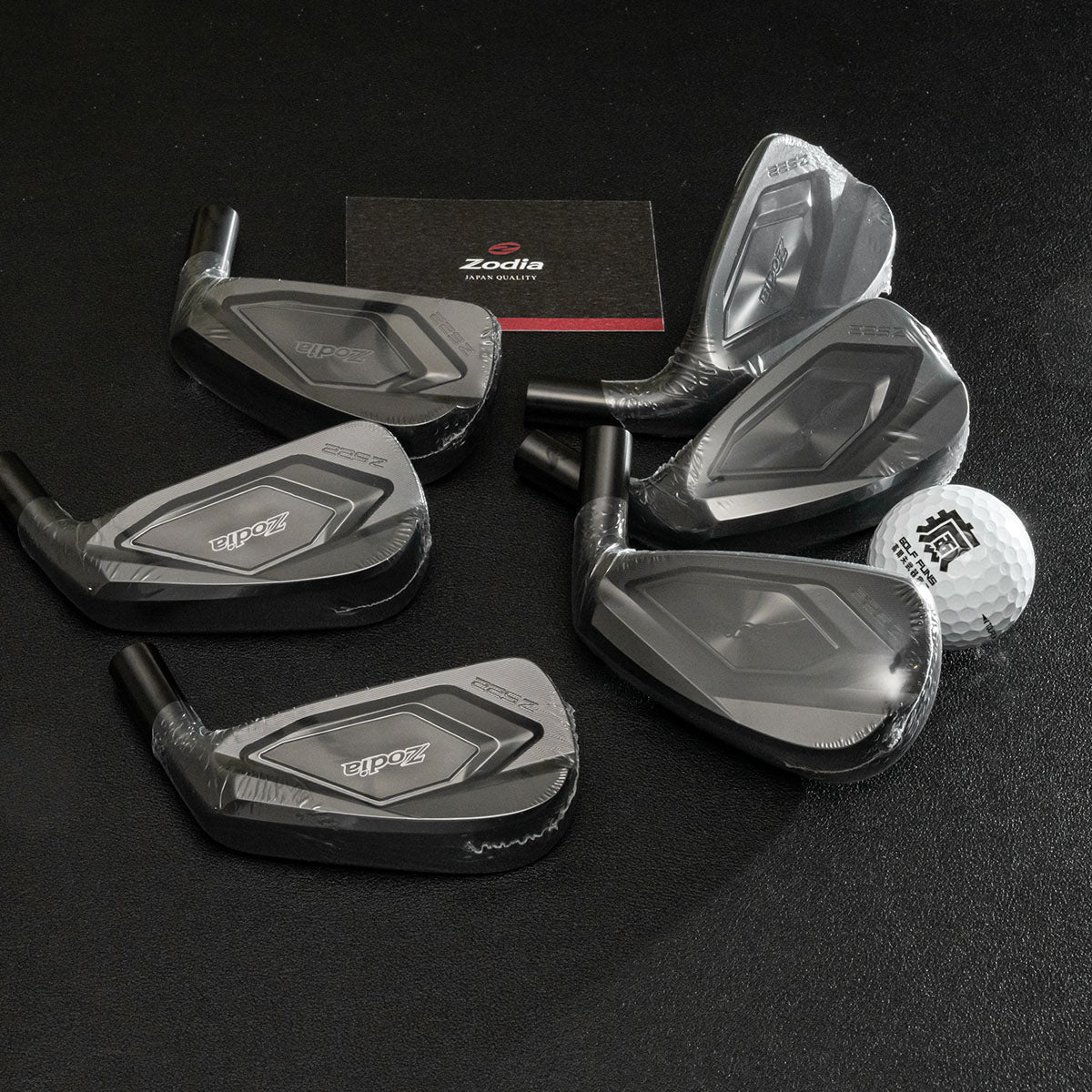

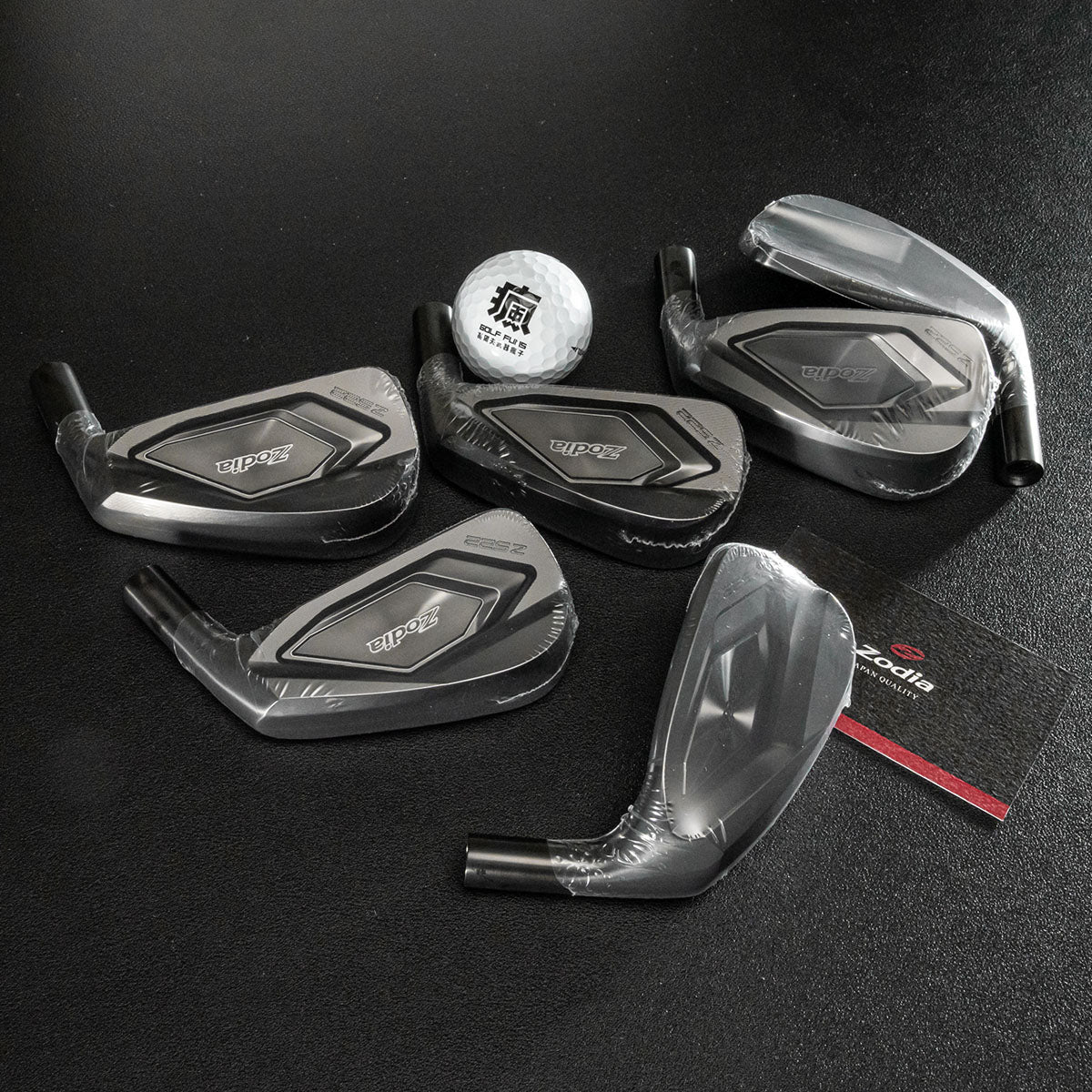

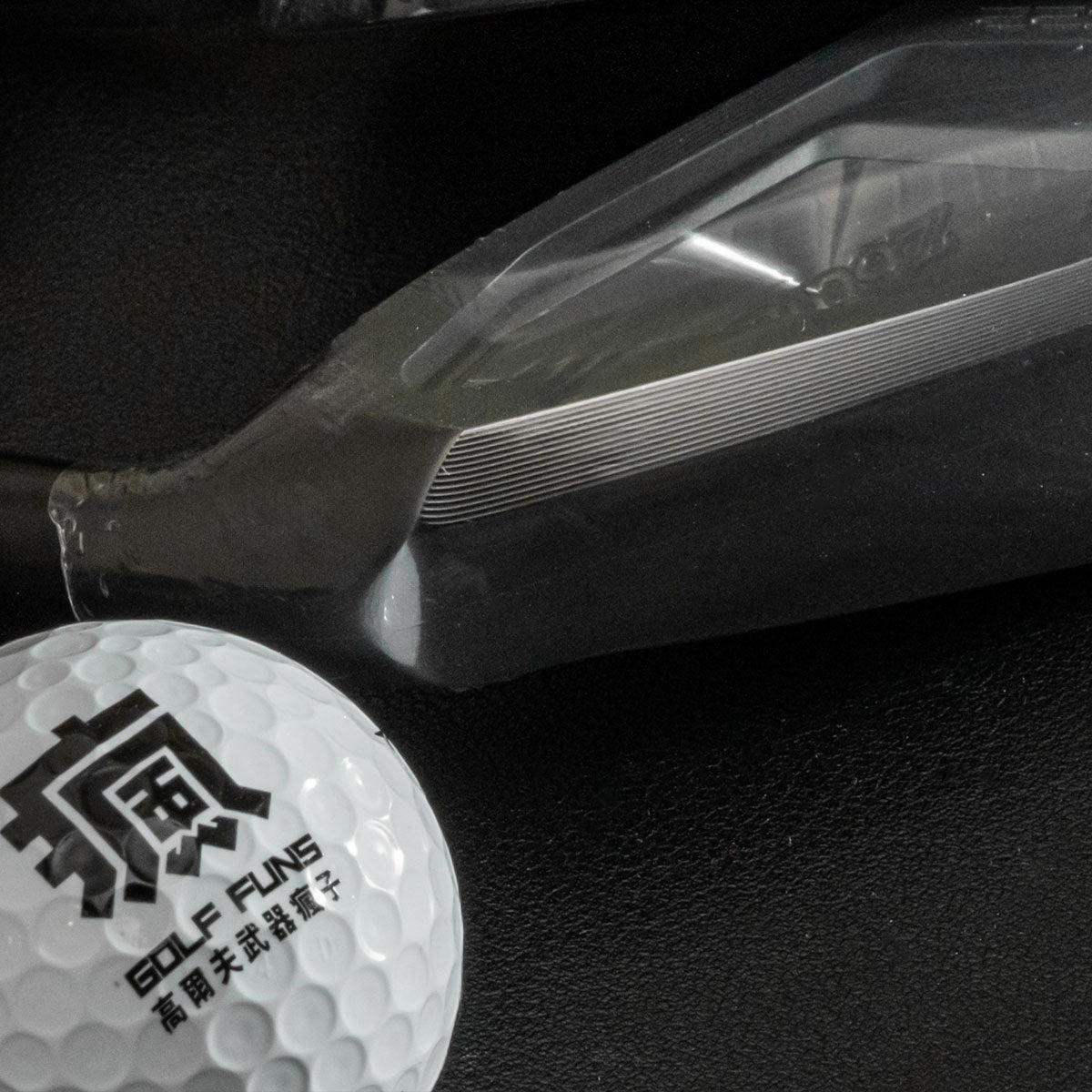

Zodia Z522 首款低重心袋腔體結構

Z522 專為普通高爾夫球手開發,保留了 Zodiac 的硬朗形象,但擁有較大的甜蜜點和給人安全感的袋狀凹陷。
一種特殊的樹脂被注入底切區域以在擊球時產生舒適的手感,背面由輕質 ABS 樹脂貼片製成,可吸收振動。
此外,頭體上的類鑽石碳(DLC)黑色塗層不僅使其外觀奢華,還能減少陽光的反射。

ヘッド素材 S20Cボディ+SCM4140フェース
ヘッド製法 軟鉄鍛造+CNC加工
バッチ:ABS樹脂
仕上げ ニッケルクロムサテン+DLC BK処理
クラブ #5 #6 #7 #8 #9 #P
ロフト角(±1.0) 25.0 28.0 31.0 35.0 39.0 44.0
ライ角(±1.0) 61.0 61.5 62.0 62.5 63.0 63.5
ヘッド重量(±2.0) 256.0 263.0 270.0 277.0 284.0 291.0
バンス角(±1.0) 4.0 4.5 6.0 6.0 7.0 9.0
FP値(±1.0) 5.5 5.5 6.0 6.0 6.5 6.5

Zodia

Detailed Production Process

Let us introduce production process of soft iron forging club head, which is Zodia’s signature product.

Forged soft iron head arrives

After blocking, proceed deburring and then do finish forging again.


Engrave count numbers on sole


Weight Adjustment


Smoothing treatment by CNC

04
Make the face, grinded by grinder, even more accurate and smoother by NC processor.

Score line stamp

Stamp the score line with even thickness and width on face, which smoothened by processor.


Loft and lie angle adjustment

Generally it is adjusted by bending, but at Zodia, Chiba adjusts by hammering. By this process, it is nudged to more natural curve.


Cavity CNC process

Design of back face is proceeded by three dimensional process.


Engraving stamp

08

Grinding


It is finished to become Zodia head by Chiba’s daring but delicate technique.

Completion

Then finally complete after coloring and final inspection. As it shows, Zodia’s club implemented inimitable quality, which cannot be done by mass production, by Chiba himself does most of the processes and spend a long time creating.
